Thermo-Elasto-Viscoplastic Modeling of Polymers in Abaqus | UMAT Subroutine
€ 340.0
Package Description
The training package centers on Finite Element Analysis (FEA) using Abaqus Standard, specifically focusing on the implementation of advanced constitutive models via Fortran subroutines. The core engineering methodology is a coupled thermo-mechanical finite strain formulation utilizing a multiplicative decomposition of the deformation gradient. The provided code reveals a sophisticated UMAT (User Material) subroutine that implements a “Two-Part” material model structure: Part A features rate-dependent plasticity governed by an Eyring flow rule, while Part B utilizes a hyperelastic network model characterized by a “Locking stretch” parameter, typical for large-deformation polymer mechanics.
This comprehensive training course includes detailed PDF and video tutorials that rigorously cover the underlying theory and mathematical formulations of finite strain kinematics, including Polar decomposition and Hencky strain calculations. The curriculum features a dedicated line-by-line investigation of the UMAT code, guiding users through complex algorithms such as the substepping scheme for numerical integration and the consistent tangent stiffness tensor calculation. Practical application is enforced through specific workshops, most notably the “Tension” simulation derived from the inp file, where users will simulate and analyze tensile deformation under coupled thermal conditions. By the end of this course, users will gain the practical skills necessary to develop, debug, and deploy custom thermo-viscoplastic material subroutines for high-fidelity engineering simulations.
Free Code and Abaqus Input File
The Fortran code and Abaqus .inp file provided on this page are adapted from original materials released under the Creative Commons Attribution-NonCommercial 3.0 license. We have made certain modifications to the original files, including code adjustments and changes required for the examples used in our training materials.
The code and .inp file themselves are provided free of charge in accordance with the original license. You may enter your email address to receive these files at no cost. No purchase is required.
The paid training package available on this website is separate from the free files. The purchase price applies only to our original educational content, including video lessons and PDF documentation that explain the code, the modifications, and the Abaqus model in detail. The original code and input file are not being sold.
The original work remains the property of its respective author(s), and we provide proper attribution as required by the Creative Commons Attribution-NonCommercial 3.0 license. Our modified version is based on the original work and is provided for non-commercial access under the same non-commercial conditions applicable to the original materials.
Syllabus
| An introduction to the Viscoplastic Material Models | – |
| Thermo-Elasto-Viscoplastic Modeling of Polymers: Detailed Review | – |
| A review of Hencky elasticity Theory | – |
| Review on Ree–Eyring thermal activation theory | – |
| How to develop the full Thermo-Elasto-Viscoplastic Model (Theory and Formulation) | – |
| Line by Line Investigation of the UMAT Fortran Code | – |
| Workshop Overview: Analysis of an Axisymmetric element in Abaqus | – |
| An introduction of Polymers and their Industrial Applications | – |
| An overview of polymers behavior and their Thermo-Elasto-Viscoplastic Modeling | – |
| Step-by-Step overview of the implemented theory and formulation | – |
| Line-by-line review of the UMAT Subroutine Code | – |
| Workshop: Step-by-step Guide on Thermo-Elasto-Viscoplastic Simulation of a Polymer in Abaqus (From Beginning to Visualization) | – |

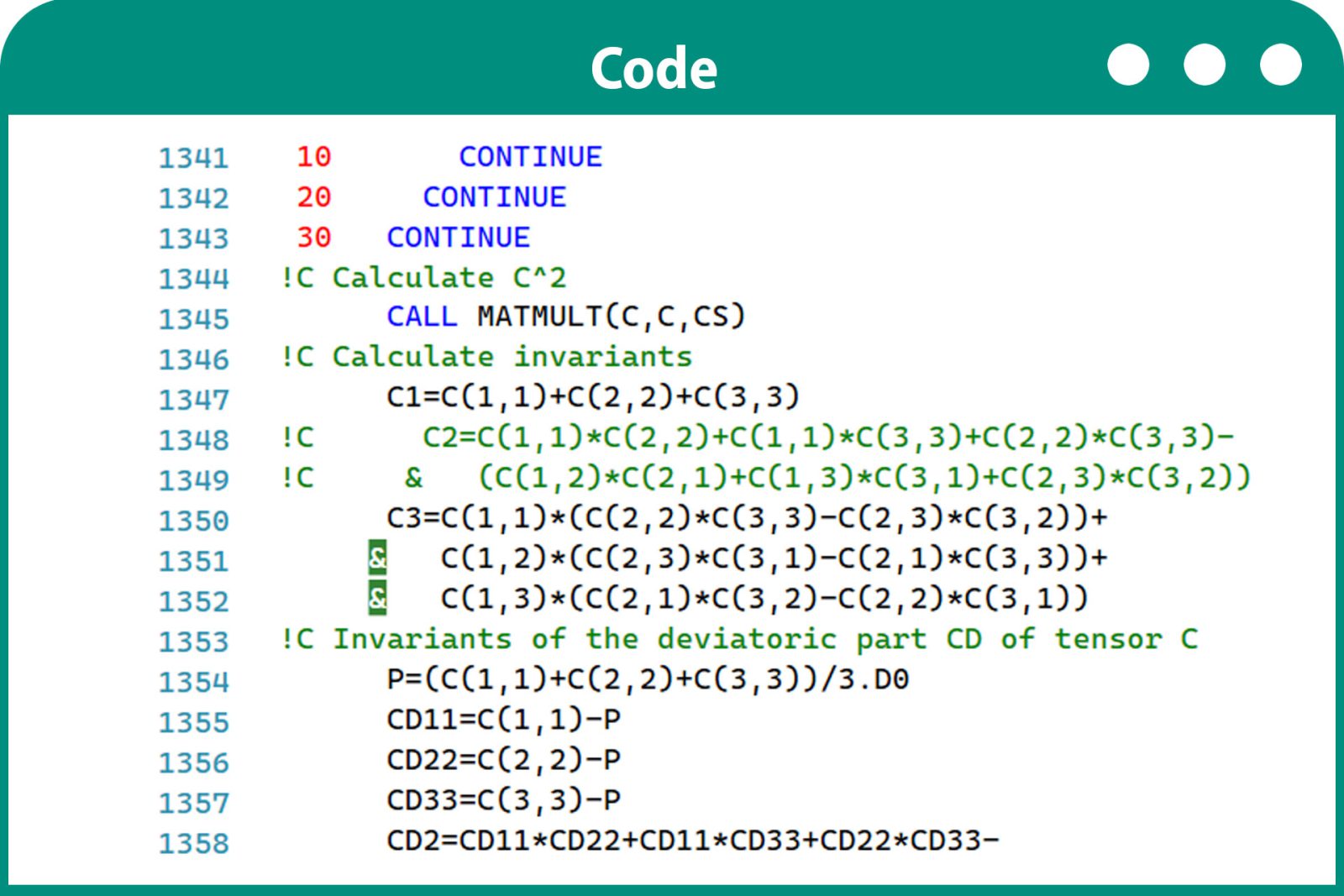

Course Screenshots
Quality Insurance
Refunds, per terms and conditions, cover:
defects in input file (.inp) execution.
defects in subroutine file (.for) execution.
guarantees validation and accurate simulation results.
ensures product matches page descriptions.
Attendance Certificate
Optional Certificate Available for an additional fee:
Issued upon successful completion.
Verifiable anytime on our website.
Proof of training participation.
Validates understanding of topic simulation.
Tutor
Produced in Partnership Plan
The CAE Assistant team, in collaboration with numerous academics, researchers, and industry professionals holding bachelor’s, master’s, and PhD degrees, has developed a variety of educational packages. One of the key advantages of leveraging the expertise of such individuals is the creation of high-quality, valuable content that stands out compared to competitors. This has earned the trust of many individuals from renowned companies and universities in our team and the quality of the content we produce, which has always been a source of pride for us.
This course provides a complete guide to implementing Thermo-Elasto-Viscoplastic models in Abaqus using Fortran. You will learn to develop UMAT and UMATHT subroutines, gaining the proficiency to code and simulate your own custom material formulations effectively by the end of the training.
Given the critical role of Thermo-Elasto-Viscoplastic models in sectors ranging from aerospace and structural engineering to biomechanics, this course is tailored for a broad spectrum of professionals and academics. Whether you are a student, professor, or practicing engineer in the mechanical, civil, or aerospace fields, this training equips you with the necessary skills to implement and simulate custom material models in Abaqus, directly supporting your specific research and engineering objectives.
By purchasing this training package, not only will you receive all the simulation files, but you will also gain a comprehensive, step-by-step understanding of the theory, formulation, and development of Fortran subroutines. You will learn how to code and simulate your own specific problems in Abaqus without difficulty by following our investigation of the UMAT and UMATHT code. Furthermore, our tutorials are prepared in high quality with accurate captions, ensuring that the value you receive far exceeds the cost of the investment.
The PDF and Video provided in this training are in English. They are error-free, and presented in a clear and straightforward manner, making it easy for anyone with a basic understanding of English to follow.
We fully and unconditionally guarantee the accuracy and functionality of our content, ensuring it matches the descriptions provided on our website. This guarantee covers any discrepancies between the training and the presented syllabus, as well as any issues with the files, code, and videos you receive. For more information you can check the Terms and Conditions.
The files included in this training are checked on Abaqus 2022. However, we have provided the input (INP) file to allow you to run the simulations on other versions as well. Please note that subroutine arguments may vary slightly between Abaqus releases. If you encounter any version-specific errors, you may need to adjust these parameters manually; however, we will do our best to assist you if possible.
By purchasing this package, you will get access to the following:
-
Training video: To facilitate your learning experience, we provide video tutorial= that complements the PDF guide. The video offers an in-depth explanation of the code and guide you through the workshop, demonstrating exactly how to analyze the files and interpret the results.
-
PDF file: Upon purchasing this training package, you will receive a comprehensive PDF Guide. This document covers all the necessary theories and mathematical formulations. Furthermore, we provide a detailed line-by-line (or block-by-block) explanation of the subroutines, ensuring you understand exactly how the code is structured and implemented.
-
Abaqus inp File You will receive full access to the Abaqus inp file for the workshop, along with the Fortran source code, allowing you to keep and utilize them for your own projects.
Yes, you can receive this training in a language other than English, which includes an additional fee. If you are interested, please contact our online chat or support email for more information.
Yes, depending on the modifications you require, we can implement the changes you need. To learn more about the terms and conditions for such custom orders, please contact our support email or our online chat.
Purchase Multiple Packages at Less than Half Price
If you are a faculty member or a company requiring multiple training packages for your staff, or If you’re an individual seeking to enhance your skills across various domains, we offer a tailored bundle plan. This plan provides access to a specific number of packages for a duration of 1 or 2 years. By paying the bundle plan fees, you’ll also receive discounts on a range of our additional services. This is a comprehensive and cost-effective solution to enhance the knowledge and skills of your team or students.
Please note: This bundle plan includes a variety of our popular training packages. If you would like to confirm the specific packages included in this plan (all packages under 400€), please check THIS PAGE or feel free to contact our support team via online chat.
